Brand Name : | H-LIN |
Model Number : | HL-2/8 CWDM |
Certification : | CE/ROHS/IOS9001 |
Price : | negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 50000 Piece/Pieces per Month |
Delivery Time : | 3~5 working days after payment |
Insert Type Module 2 to 8 wavelength division multiplexer CWDM
MUX/DEMUX
Description:

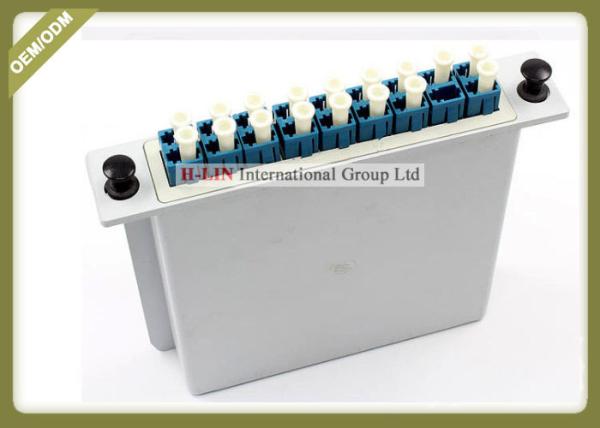

This one Inserte PLC spliter is a LGX box package, which
encapsulates 2 1*8 coarse wave division multiplexers in a plug box,
the size of which is 100*130*25mm, that is, the 1*8CWDM MUX/DEMUX
is installed in the LGX cassette, and the corresponding fiber
adapter is installed on the LGX box. The maximum capacity of each
channel of the WDM is 2.5G, and the wavelength of all the coarse
wavelength division multiplexers can be selected at 18 wavelengths
at the wavelength of 1270~1610nm every 20nm. The coarse wavelength
division multiplexer is suitable for service access types, such as
PDH, ATM, SDH (STM-16/STM-4/STM-1), SOTRT (OC-48/OC-12/OC-32),
Ethernet 10/100BaseT, GE, FICON/ESCON/FIBER ChanTRl and other
access services. The product conforms to ITU-T G.695 standard, YD/T
1327-2004. We also provide a complete set of coarse wavelength
division multiplexer system, including SFP module, optical
transceiver and so on.
Parameters
Technical specifications | |||
Parameters | Indicators | unit | |
Public end | Full band (1260~1610) | nm | |
MUX/DEMUX Transmission center wavelength | 1270,1290,1310……1590,1610(±6.5) | nm | |
MUX/DEMUX channel Insertion loss | <3.0 | dB | |
Isolation | Non adjacent channel | ≥30 | dB |
Adjacent channel | ≥40 | dB | |
RL | >50 | dB | |
Temperature sensitivity | <0.005 | dB/℃ | |
Polarization mode dispersion loss | <0.10 | dB | |
Polarization mode dispersion loss | <0.10 | Ps | |
Directional | ≥50 | dB | |
Maximum injection power | 300 | mW | |
working temperature | -20~+70 | °C | |
Storage temperature | -40~+85 | °C | |
fiber type | SMF-28e | ||
Package size | 1x8CWDM Mux and Demux LGX cassette | 100*130*25mm,white | mm |
LGX cassette panel fiber adapter type | SC OR LC | / |
Features
Good working bandwidth
Optical fiber communication system.
Low loss
Optical instruments
High channel isolation
Application
Optical amplifier
High stability and high reliability
Transmission and fiber laser
Optical path free process
System monitoring procedures
![]() |
